When applied to drive wheel transmission systems, planetary gearboxes perfectly match the core operating requirements of drive wheels, including limited installation space, high starting torque demand, stable speed regulation and positioning, and frequent start-stop and forward/reverse operation. Compared with traditional reducers such as worm gear reducers or helical gear reducers, planetary gearboxes offer multiple dedicated advantages in drive wheel applications, including strong adaptability, high transmission efficiency, stable operation, and flexible installation. Moreover, drive wheels in different application scenarios can be matched with corresponding planetary gearbox specifications.

1. Compact Size with High Torque Output, Ideal for Limited Drive Wheel Installation Space

Drive wheels are typically integrated into the equipment chassis or traveling mechanism, where installation space is extremely limited. Planetary gearboxes adopt a planetary gear transmission structure in which power is transmitted through the meshing of the sun gear, planetary gears, and ring gear. Compared with traditional fixed-axis gear reducers, planetary gearboxes can achieve the same torque output with 30%–50% smaller volume and lower weight.

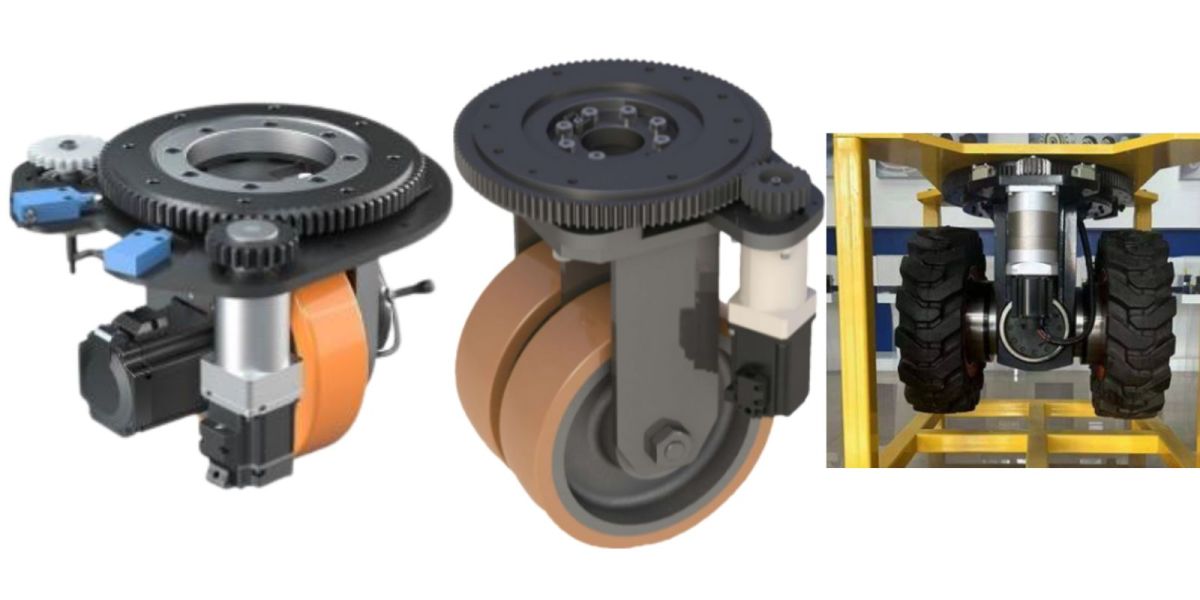

They can be directly integrated into the drive wheel hub (hub-type planetary gearbox), enabling wheel-side direct drive and significantly saving chassis space. This makes them especially suitable for AGVs, collaborative robots, and lightweight mobile equipment such as small construction machinery.

2. High Transmission Efficiency, Reduced Energy Consumption, and Extended Endurance

The power source of drive wheels is typically electric motors (servo motors, DC motors, or stepper motors), and energy consumption directly affects equipment endurance (e.g., AGVs and cleaning robots) or overall energy efficiency (e.g., logistics conveying systems).

Thanks to the multi-tooth simultaneous meshing design, planetary gearboxes significantly reduce transmission losses. Standard-precision models typically achieve efficiency ≥95%, while precision models reach ≥97%, far exceeding that of worm gear reducers (typically 60%–80%). In addition, planetary gearboxes maintain high efficiency even at large reduction ratios, minimizing motor energy loss and significantly improving the driving range of electrically powered mobile equipment.

3. High Rigidity and Low Backlash for Smooth Operation and Precise Positioning

High rigidity:

Planetary gearboxes feature large gear contact areas and compact housing structures, providing strong torsional rigidity. They effectively absorb road vibrations and load impacts encountered during drive wheel operation, preventing transmission play or sudden movement. This ensures straight-line stability and smoother turning performance.

Low backlash:

Precision planetary gearboxes can achieve backlash of ≤1 arcmin, while standard models typically maintain ≤5 arcmin, significantly outperforming traditional reducers. This enables precise speed control and positioning of drive wheels, making them ideal for AGVs, AMRs, and autonomous mobile robots that require accurate docking and path planning, while avoiding positioning errors caused by backlash.

4. High Impact Resistance for Frequent Start-Stop and Reversing Conditions

Typical drive wheel operating conditions involve frequent start-stop cycles, forward and reverse rotation, and acceleration/deceleration, such as AGV loading/unloading operations, steering of construction machinery, and stop-and-go logistics carts.

The multi-gear load-sharing design of planetary gearboxes distributes tooth surface stress evenly, resulting in reduced wear and excellent impact resistance. They can withstand short-term overloads (typically 2–3 times the rated torque). Compared with traditional single-tooth meshing reducers, planetary gearboxes can achieve a 2–3 times longer service life, significantly reducing maintenance frequency.

5. Flexible Installation Options for Different Drive Wheel Layouts

Drive wheels come in various installation configurations, such as hub drive, side-mounted motor drive, and right-angle output layouts. Planetary gearboxes support multiple mounting and output options, allowing them to be perfectly matched to different drive wheel structural designs and system layouts.

6. Wide Speed Ratio Range to Meet Different Driving Speed Requirements

Planetary gearboxes offer a wide range of reduction ratios (single-stage ratios of 3–10, multi-stage ratios exceeding 1000). They can be matched with motors of different speed characteristics to achieve high starting torque at low speed and smooth, stable operation at higher traveling speeds, fully meeting the performance requirements of drive wheels in various operating scenarios.

7. High Protection Level for Outdoor and Harsh Operating Environments

Drive wheels are often exposed to dust, water, and oil contamination, especially in outdoor construction machinery and warehouse logistics environments. Planetary gearboxes can be equipped with sealing rings, dust covers, and reinforced sealing designs to effectively prevent the ingress of dust and moisture, avoiding corrosion of gears and bearings. This makes them suitable for outdoor, humid, and dusty environments without the need for additional protective measures.
