Even in 2026, many systems are still built using the traditional combination of motor + gearbox + encoder + drive.

However, in recent years, smart harmonic drive servo actuators have been rapidly replacing this conventional architecture.

By significantly simplifying mechanical design, shortening R&D cycles, and delivering clear performance advantages, smart actuators are becoming the new standard for modern intelligent equipment.

This article provides a detailed introduction to smart harmonic actuators and explains why now is the right time to adopt them.

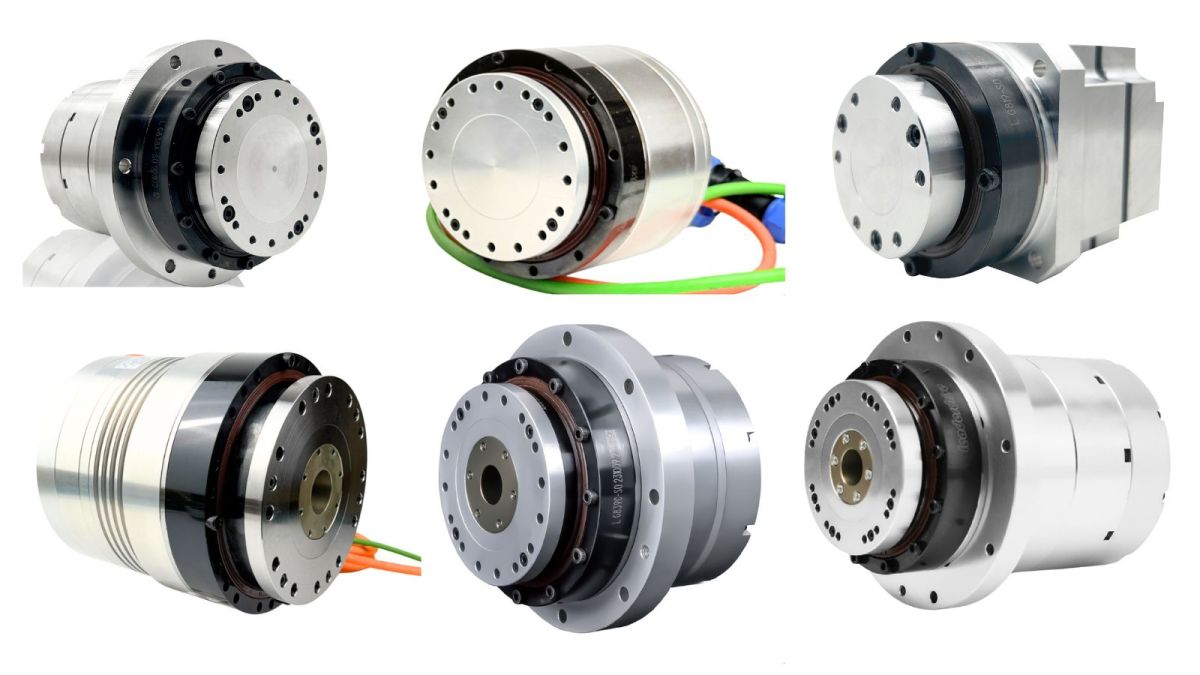

What Is a Smart Harmonic Actuator?

HONPINE smart actuators are built on a modular architecture.

The motor and harmonic reducer are individually tested for performance before being integrated into a single unit, ensuring high and consistent overall performance.

This high level of integration is not a simple 1+1+1 hardware combination.

Through optimized tolerance management and dimensional chain control, integrated actuators fundamentally address challenges in design, machining, assembly, inspection, and component matching.

As a result, vibration and noise are significantly reduced, inertia is properly matched, axial and radial runout are minimized, and concentricity issues are effectively eliminated.

Key Features of Smart Harmonic Actuators

High Integration

  Combines a high-torque precision harmonic reducer, frameless torque motor, hollow optical (optional) multi-turn absolute encoder, and electromagnetic brake into a single compact unit.

Long Service Life

  Stable performance with precision retention for more than 15,000 hours.

High Performance

  High tilting stiffness, high torque capacity, high load capability, and smooth operation.

Maintenance-Free

  The reducer is maintenance-free throughout its service life.

  Thanks to the modular design, when reducer accuracy reaches the end of its lifecycle, maintenance or refurbishment can be performed at relatively low cost.

High Protection

  Standard IP65 protection across the entire series, with IP67 available as a customization option.

Ease of Use

  Direct-drive integrated design with full sealing, easy installation, and true plug-and-play operation.

Hollow Shaft Design

  The hollow shaft allows easy routing of cables, air lines, or laser beams.

  The HAMF series offers even larger hollow bore diameters for advanced integration needs.

Should Traditional Harmonic Drive + Servo Motor Solutions Be Completely Replaced?

Not entirely.

In many scenarios, the traditional harmonic drive + servo motor solution still offers clear advantages.

For example, when a system requires a highly customized design—such as selecting motors, encoders, or drives specifically for extreme environments—the traditional approach provides maximum flexibility without being constrained by an integrated module’s internal design.

Traditional solutions are also more flexible for long-term maintenance and repair, as motors, drives, and reducers can be freely selected and replaced independently.

Which Applications Should Transition to Smart Actuators?

If your system requires:

Limited installation space

Rapid validation of control algorithms and mechanical structures

Shortened development cycles

Lightweight design

High torque density

Short axial length

Force control or impedance control

Then smart harmonic drive actuators are the optimal choice.

2026: The Right Time to Make the Transition

After more than a decade of market validation, smart actuators have reached a high level of maturity.

Once met with skepticism, they have now been proven reliable and effective through extensive real-world deployment by numerous companies.

In 2026, the transition from traditional architectures to next-generation smart harmonic drive actuators is not just a trend—it is the logical step forward for modern robotic and intelligent systems.
