Easy Installation Strain Wave Gear Support Custom Design to Match Motor Models

● Introduction

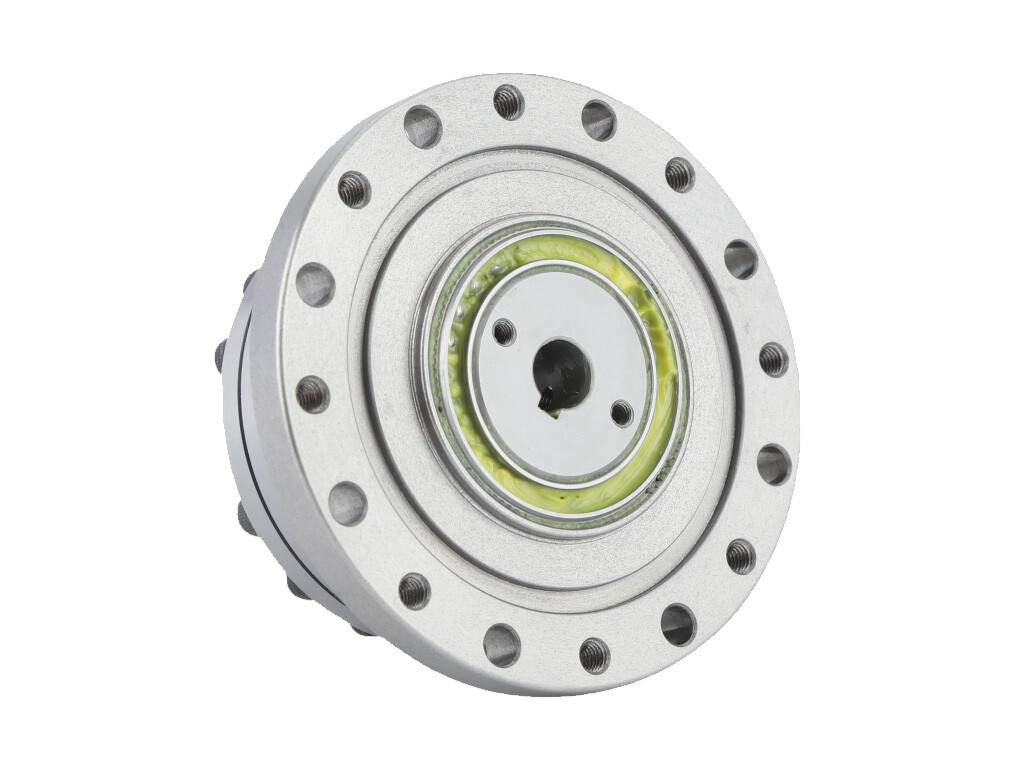

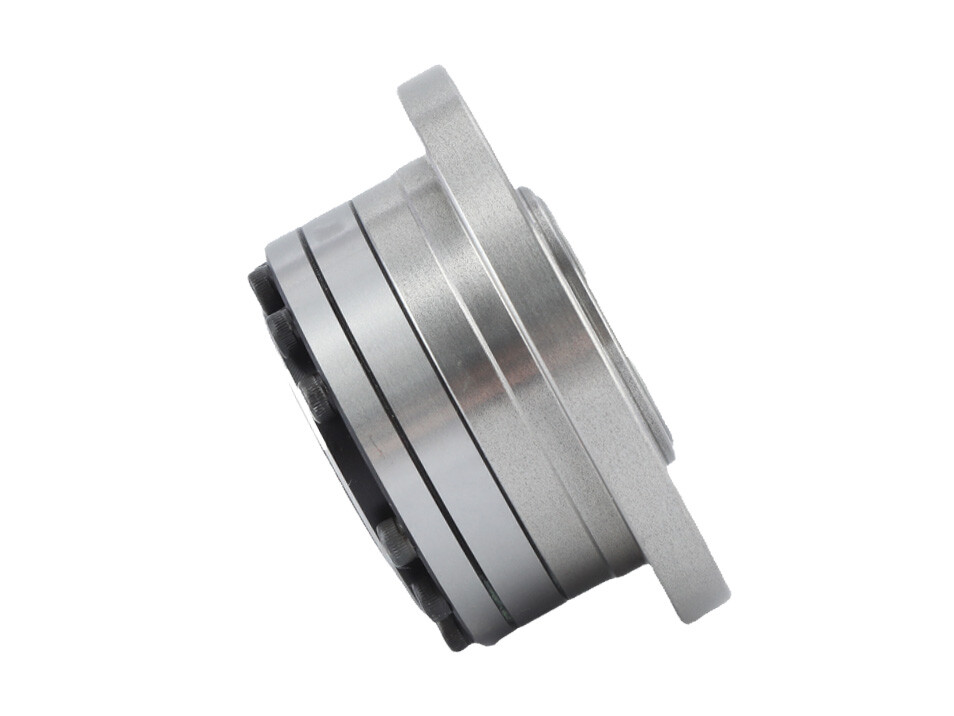

The FSG-I series Strain wave gear employs an integrated cam-type wave generator. The cam shaft bore dimensions can be customized to match customer-specific motor models. The input shaft directly interfaces with the wave generator's inner bore via a keyed connection. This system is typically configured with the circular spline fixed at the base and the flexspline functioning as the output end.

Features

● The integrated cam design allows easier installation and offers multiple mounting configurations

● Higher torque output with optimized compact dimensions

● Precise rotation and positioning control for accurate motion

● Coaxial alignment between input and output shafts

● Commonly used in robot arm joints or sealed rotary platforms requiring environmental protection

Specification

Sheet 1



Starting torgue of FSG series unit:cNm
Reduction ratio	11	14	17	20	25	32	40
50	—	4.5	6.7	8.6	17	34	61
80	—	3.1	4.4	5.4	10	21	39
100	—	2.8	3.7	4.7	8.8	20	34
120	—	—	3.4	4.2	8	17	31
160	—	—	—	3.6	6.9	15	26

Sheet 2



Model	Design value	Instant permissible value
FSG-14	Mb di 20Nm	Mb max 40Nm
	Ftdi 180N	Ft max320N
	Fa di 180N	Fa max 320N
FSG-17	Mb di30Nm	Mb max 60Nm
	Ftdi230N	Ftmax400N
	Fa di 230N	Fa max 400N
FSG-20	Mb di42Nm	Mb max 80Nm
	Ftdi 270N	Ftmax 480N
	Fa di 270N	Famax 480N
FSG-25	Mb di 80Nm	Mb max 160Nm
	Ft di440N	Ft max 770N
	Fa di 440N	Fa max770N
FSG-32	Mb di 220Nm	Mb max 440Nm
	Ftdi 900N	Ft max 1600N
	Fa di900N	Fa max 1600N
FSG-40	Mb di 320Nm	Mb max 650Nm
	Ftdi 1000N	Ft max 1750N
	Fa di1000N	Fa max 1750N

Sheet3



Model	Reduction ratio	Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Permissible maximum input rotational speed(Grease)	Permissible average input rotational speed(Greaae)	Backlash	weight	Desian life
Model	Reduction ratio	Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	kg	Hour
14	50	7	0.7	23	2.3	9	0.9	46	4.7	8500	3500	≤20	FSG-I/II:0.51	10000
	80	10	1.0	30	3.1	14	1.4	58[1]	5.9[1]					15000
	100	10	1.0	36	3.7	14	1.4	58[1]	5.9[1]					15000
	120	10	1.0	36	3.7	14	1.4	58[1]	5.9[1]					15000
17	50	21	2.1	44	4.5	34	3.4	91	9	7300	3500	≤20	FSG-I/II:0.67	10000
	80	29	2.9	56	5.7	35	3.6	109[1]	11[1]					15000
	100	31	3.2	70	7.2	51	5.2	109[1]	11[1]					15000
	120	31	3.2	70	7.2	51	5.2	109[1]	11[1]					15000
20	50	33	3.3	73	7.4	44	4.5	127	13	6500	3500	≤20	FSG-I/II:0.96	10000
	80	44	4.5	96	9.8	61	6.2	165	17					15000
	100	52	5.3	107	10.9	64	6.5	191	20					15000
	120	52	5.3	113	11.5	64	6.5	191	20					15000
	160	52	5.3	120	12.2	64	6.5	191	20					15000
25	50	51	5.2	127	13	72	7.3	242	25	5600	3500	≤20	FSG-I/II:1.46	10000
	80	82	8.4	178	18	113	12	332	34					15000
	100	87	8.9	204	21	140	14	369	38					15000
	120	87	8.9	217	22	140	14	395	40					15000
32	50	99	10	281	29	140	14	497	51	4800	3500	≤20	FSG-I/II:3.11	15000
	80	153	16	395	40	217	22	738	75					15000
	100	178	18	433	44	281	29	841	86					15000
	120	178	18	459	47	281	29	892	91					15000
40	50	178	18	523	53	255	26	892	91	4000	3000	≤20	FSG-I:4.60	10000
	80	268	27	675	69	369	38	1270	130					15000
	100	345	35	738	75	484	49	1400	143					15000
	120	382	39	802	82	586	60	1510[1]	154[1]					15000
