HPG Zero Backlash Gearbox: Redefining Precision Transmission for High-End Machine Tools and Rotary Tables

Introduction: Breaking the Trade-Off Between Precision, Torque, and Rigidity

In the field of high-end CNC machine tools, five-axis machining centers, precision rotary tables, and industrial automation equipment, transmission systems have always faced a fundamental challenge: it has been difficult to achieve high precision, high torque capacity, and high rigidity at the same time.

Direct drive (DD) motors provide excellent positioning accuracy and dynamic response, but they often struggle with high torque output, heavy-load machining, and overall system cost. RV reducers offer strong load capacity and high torque density, but limitations remain in backlash control, precision retention, and long-term accuracy stability. Harmonic drives achieve outstanding precision in compact designs, yet their lower rigidity and fatigue limitations restrict their application in heavy-duty machining environments.

For modern manufacturing equipment, users increasingly require a transmission solution that can deliver direct-drive-level accuracy, RV-level torque density, and superior structural rigidity in one compact package.

The HPG zero backlash gearbox was developed to address this challenge. Through an innovative self-compensating backlash elimination structure, HPG combines precision, torque capacity, rigidity, and long-term stability, creating a new generation of high-performance transmission technology for demanding industrial applications.

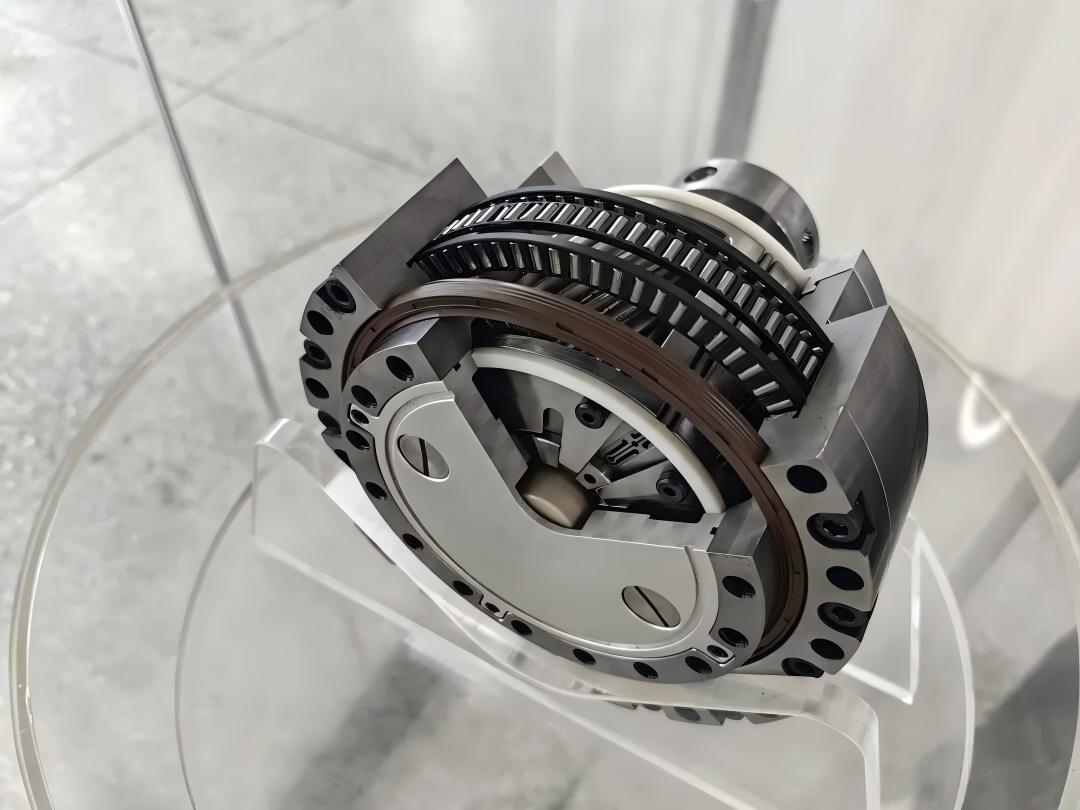

What Is an HPG Zero Backlash Gearbox?

An HPG zero backlash gearbox is a precision transmission system designed for applications requiring extremely low backlash, high positioning accuracy, and heavy load capability.

Unlike conventional planetary gearboxes, which rely mainly on machining accuracy and assembly precision to reduce backlash, HPG adopts a self-eliminating backlash mechanism that maintains continuous gear engagement during operation.

The core principle is based on elastic compensation technology. Through controlled elastic deformation of the internal gear structure, the gear teeth remain tightly engaged with the planetary gears, reducing transmission clearance and preventing backlash growth caused by long-term wear.

This design allows HPG gearboxes to maintain stable accuracy throughout their service life, making them especially suitable for CNC rotary tables, precision indexing systems, and high-load positioning applications.

Precision Performance Comparable to Direct Drive Systems

Precision is one of the most critical factors in advanced machine tools. Any positioning error in the rotary axis directly affects machining accuracy, surface quality, and overall productivity.

According to measured performance data, the HPG-40T achieves an angular transmission accuracy of approximately 15 arc seconds, reaching the same level as high-performance DD direct drive motors.

Its repeat positioning accuracy reaches ±2 arc seconds, demonstrating excellent positioning consistency even under repeated operating conditions.

Compared with traditional transmission solutions:

The advantage of HPG is that it provides direct-drive-level precision without requiring expensive external feedback systems such as high-resolution optical scales for compensation.

For manufacturers seeking both accuracy and simplified system integration, HPG offers a highly competitive alternative.

High Torque Density Without Increasing Machine Size

In heavy-duty machining applications, torque output determines whether equipment can handle aggressive cutting conditions, large workpieces, and rapid acceleration and deceleration cycles.

Traditionally, achieving higher torque required larger motors or larger mechanical structures. HPG challenges this limitation by delivering high torque density within a compact housing.

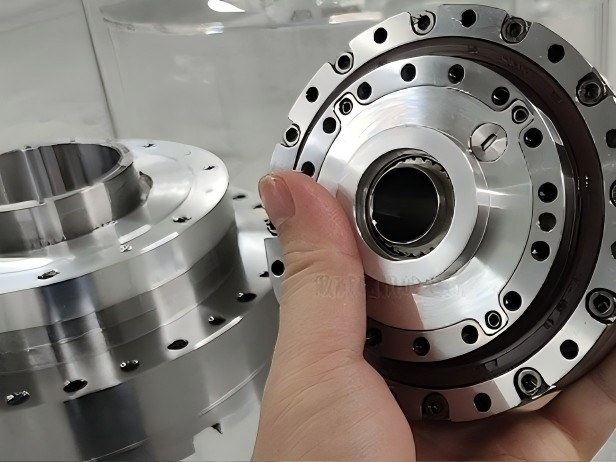

For the same external diameter of approximately 190 mm, the HPG-40T provides:

• Rated torque: 420 Nm

• Starting torque: 840 Nm

Its torque performance is comparable to the Nabtesco RV-40E reducer, while maintaining a more compact structure.

Compared with other transmission technologies, HPG provides significantly higher torque output in the same installation space. This makes it particularly suitable for:

• CNC rotary tables;

• five-axis machining centers;

• precision indexing systems;

• heavy-load automation equipment.

By combining compact dimensions with high torque capability, HPG solves a common industry problem: direct-drive systems often provide excellent precision but insufficient torque for heavy machining applications.

Exceptional Torsional Rigidity for Heavy Cutting Applications

Accuracy alone is not enough for high-end machine tools. During heavy cutting operations, insufficient rigidity can cause vibration, deformation, and machining errors even when positioning accuracy is excellent.

The HPG-40T achieves a measured torsional stiffness of approximately:

220 Nm/arcmin

This performance significantly exceeds many conventional transmission systems.

Comparison:

The high torsional stiffness allows HPG to maintain stable positioning under external cutting forces and sudden load changes.

In addition, HPG features excellent bearing performance:

• Main bearing torque stiffness: 2880 Nm/arcmin

• Allowable bending moment: 2720 Nm

These characteristics provide strong resistance against lateral cutting forces, improving machining stability and extending equipment service life.

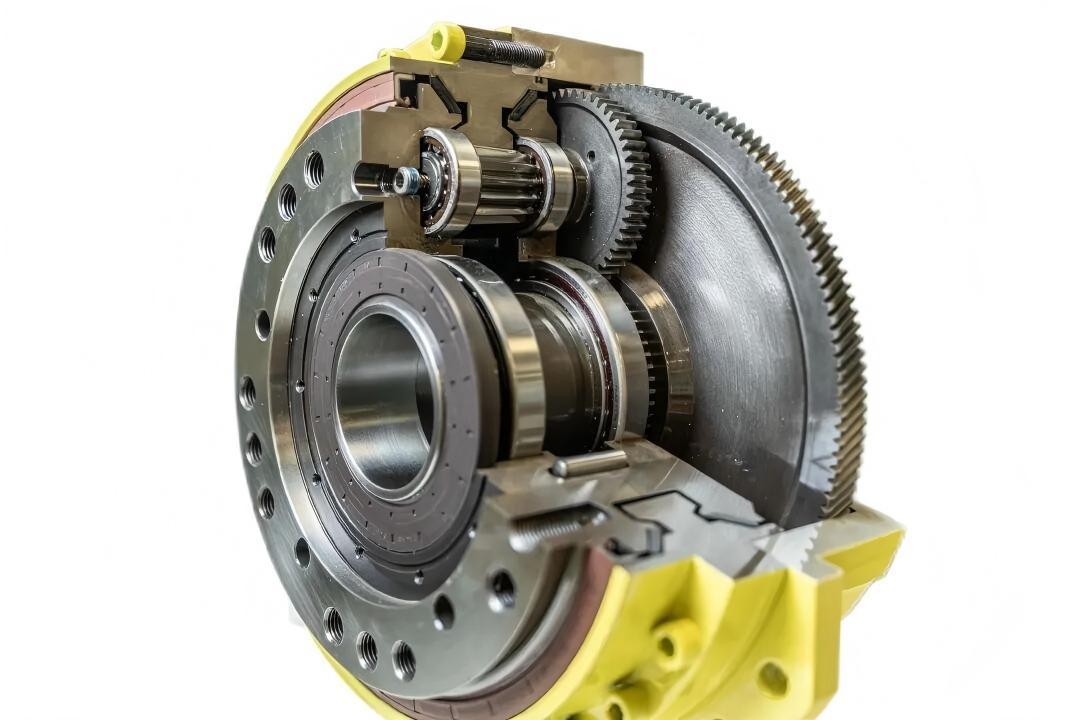

The Technology Behind HPG Self-Eliminating Backlash

The key innovation of HPG lies in its self-compensating backlash elimination mechanism.

Traditional precision gear reducers attempt to minimize backlash by increasing manufacturing accuracy. However, even the highest machining precision cannot completely eliminate clearance caused by:

• gear wear;

• thermal expansion;

• long-term operation;

• assembly variation.

HPG adopts an elastic compensation approach instead of relying only on manufacturing tolerance.

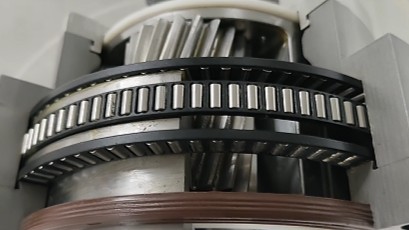

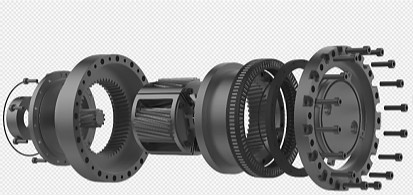

By using a flexible internal gear structure, the gearbox can maintain a continuous preload between gear teeth. This allows the system to automatically compensate for microscopic wear during operation.

The benefits include:

• stable backlash performance over the entire service life;

• iimproved repeatability;

• reduced positioning error;

• enhanced dynamic response.

This approach represents a different philosophy from conventional precision gear manufacturing: instead of continuously improving machining tolerance, HPG uses intelligent mechanical compensation to maintain performance.

HPG Compared with Traditional Transmission Solutions

HPG vs DD Direct Drive Motors

DD motors are widely recognized for their excellent precision and smooth motion. However, they usually require larger motors to achieve high torque output.

HPG provides comparable precision while offering:

• higher torque density;

• stronger mechanical rigidity;

• more compact installation dimensions;

• better suitability for heavy-load applications.

HPG vs RV Reducers

RV reducers are widely used in industrial robots and precision machinery due to their high load capacity.

Compared with traditional RV solutions, HPG provides:

• higher torsional stiffness;

• improved backlash stability;

• stronger long-term precision retention;

• excellent bearing load capability.

HPG vs Harmonic Drives

Harmonic drives are known for compact size and high precision, but their flexible components may experience fatigue under continuous high-load operation.

HPG offers advantages in:

• structural rigidity;

• torque capacity;

• impact resistance;

• continuous heavy-duty operation.

Applications of HPG Zero Backlash Gearboxes

Due to its combination of precision, rigidity, and torque capability, HPG is suitable for various advanced manufacturing applications.

In five-axis machining centers, HPG enables high-accuracy rotary positioning while maintaining rigidity during heavy cutting operations.

In CNC rotary tables, HPG improves indexing accuracy, repeatability, and machining stability.

In industrial automation equipment, HPG provides reliable performance for precision positioning mechanisms requiring long operating life.

In robotics and intelligent manufacturing systems, HPG offers a high-performance alternative for applications requiring both accuracy and load capability.

Why HPG Represents the Future of High-Performance Transmission Technology?

The development trend of modern manufacturing is moving toward higher precision, higher efficiency, and greater reliability.

Traditional transmission solutions often require engineers to compromise between:

• accuracy;

• torque;

• rigidity;

• durability.

HPG zero backlash gearboxes provide a new solution by integrating these advantages into one system.

With direct-drive-level precision, RV-class torque capability, and superior rigidity, HPG enables machine builders to develop more compact, accurate, and reliable equipment.

Conclusion: A New Standard for Precision Machine Tool Transmission

The HPG zero backlash gearbox is more than a replacement for traditional reducers. It represents a new approach to precision transmission design.

For high-end machine tools, precision rotary tables, and advanced automation equipment, HPG provides the possibility of achieving high accuracy without sacrificing torque and rigidity.

By combining self-eliminating backlash technology, compact high-density design, and exceptional mechanical stiffness, HPG is helping redefine the next generation of precision transmission systems.
