What does Harmonic Drive Company do?

If you’ve ever wondered, “What does Harmonic Drive Company do?”, the answer lies at the heart of modern precision motion technology. Widely used in machine tools and advanced automation systems, Harmonic Drive Company specializes in high-accuracy gear solutions that improve positioning, efficiency, and compact design. This article explores its core products, industry applications, and why its technology matters in high-performance manufacturing.

For buyers, design engineers, and production managers in the machine tool sector, that question is rarely theoretical. It directly affects axis accuracy, machine footprint, repeatability, maintenance intervals, and the ability to hold tight tolerances over long production cycles.

In practical terms, Harmonic Drive technology is closely tied to servo-driven motion systems where compact size, low backlash, and precise transmission matter. In machine tools, this can influence rotary tables, tool changers, articulated loading units, indexing systems, and auxiliary automation built around CNC equipment.

Core Business: Precision Motion and Gear Technology for Machine Tools

At its core, Harmonic Drive Company develops and supplies precision gear components and motion control products designed for applications that need accurate rotational positioning in a compact package. The best-known product family is the strain wave gear, often selected where backlash must be extremely low and transmission ratios need to remain high within limited installation space.

For machine tool equipment, this matters because many subsystems operate under demanding conditions: continuous indexing, frequent start-stop cycles, servo synchronization, and repeat positioning often within arc-minutes or better. A standard spur or planetary arrangement may be suitable in some cases, but not always when installation volume is tight and accuracy drift must be controlled.

What products are typically associated with Harmonic Drive solutions?

The portfolio generally includes precision gearheads, actuator modules, servo components, rotary units, and integrated motion assemblies. In machine tool environments, these products are often paired with servo motors from 200 W to several kW, depending on axis load, duty cycle, and acceleration requirements.

One major advantage is the ability to achieve high reduction ratios, often in a single compact stage. Ratios such as 30:1, 50:1, 80:1, or 100:1 can support fine motion control without requiring a large multi-stage gearbox, which helps designers reduce mechanical complexity and save installation space.

Why low backlash matters in machine tools

In CNC machining and related automation, backlash affects contouring quality, indexing precision, and repeatable tool or workpiece positioning. Even small transmission errors can become visible in surface finish, circular interpolation, or angular indexing tasks. For many applications, keeping backlash near the lowest practical range helps preserve consistency across 8-hour, 16-hour, or 24-hour production schedules.

• Rotary axis positioning for compact 4th or 5th axis units
• Automatic tool changer mechanisms with repeated indexing cycles
• Gantry or articulated loading systems integrated with CNC cells
• Inspection stations requiring precise angular movement
• Auxiliary automation in high-mix, low-volume production lines

The table below outlines how Harmonic Drive-style precision transmission compares with other common gearbox approaches in machine tool-related motion design.

The key takeaway is not that one gearbox type replaces all others. Rather, Harmonic Drive solutions are especially relevant when a machine builder needs 3 things at once: compact packaging, precise positioning, and stable servo behavior over repeated cycles.

Where Harmonic Drive Technology Is Used in Machine Tool Equipment

The machine tool industry increasingly blends cutting equipment with automation, flexible fixturing, and compact multi-axis systems. In this environment, Harmonic Drive technology is not limited to one isolated component. It often supports several motion points across the same production cell.

Typical application scenarios

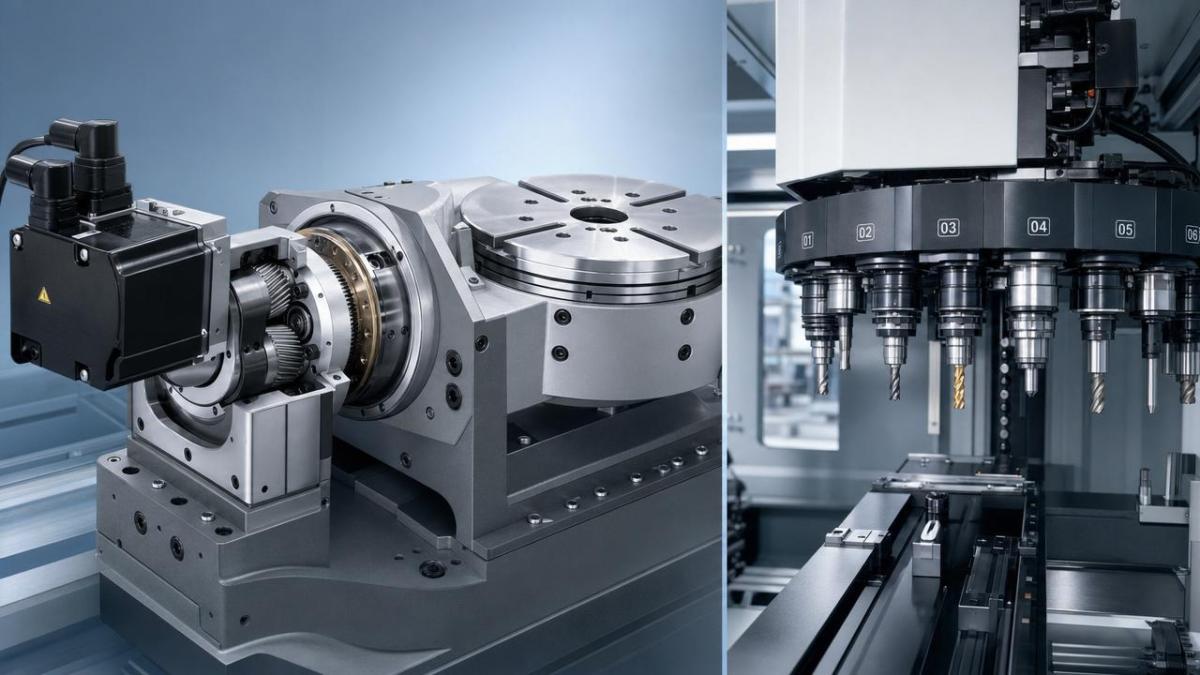

A common use case is rotary positioning. On indexing tables, trunnions, or compact tilting units, precision reduction improves angular control and helps the servo motor operate within a more favorable speed-torque range. This is especially useful when workpieces require repeat angular movement over 90°, 180°, or full 360° cycles.

Another application is automated loading and unloading. Robotic arms and articulated handling devices attached to machine tools often need lightweight joints with high reduction ratios. Compact gear units help reduce inertia, which can improve acceleration and shorten non-cutting time by a few seconds per cycle across hundreds of shifts.

Why compact motion matters

Floor space is expensive, and machine enclosures leave limited room for added mechanisms. A smaller transmission package can simplify cable routing, guarding, and maintenance access. For OEMs building modular machine platforms, saving even 50 mm to 120 mm in one axis envelope can improve overall layout flexibility.

The following table shows common machine tool application areas and the reason a Harmonic Drive-style solution may be selected.

These applications show why Harmonic Drive Company is relevant not only to robotics, but also to machine tool builders upgrading precision, automation density, and system compactness at the same time.

How Buyers Should Evaluate Harmonic Drive Solutions

When specifying a precision drive for machine tools, buyers should avoid selecting by ratio alone. A gearbox that looks correct on paper may perform poorly if torque peaks, duty cycle, stiffness, lubrication demands, and mounting accuracy are not reviewed together.

Four key evaluation factors

1. Required positioning accuracy and acceptable backlash range
2. Peak torque, continuous torque, and shock load profile
3. Available installation space, shaft orientation, and motor interface
4. Expected service life, maintenance interval, and operating cycle frequency

For example, a high-speed indexing task running 20 cycles per minute creates different thermal and fatigue demands than a slow tilting axis moving only a few times per hour. Likewise, an enclosed machine tool exposed to coolant mist, metal particles, and vibration requires careful sealing and lubrication decisions.

Common specification mistakes

A frequent mistake is undersizing torque based on average load instead of acceleration peaks. Another is overlooking system stiffness, which affects servo tuning and dynamic performance. Buyers also sometimes assume all precision reducers behave similarly, even though response, wear characteristics, and mounting tolerances can vary significantly by design.

In many projects, the best practice is to validate at least 6 items before purchase: reduction ratio, allowable radial load, axial load, torsional rigidity, lubrication method, and alignment tolerance. This reduces redesign risk during assembly or commissioning.

The table below provides a practical checklist for machine tool procurement and engineering teams.

A disciplined evaluation process can shorten implementation time by 2 to 4 weeks, especially when the gearbox, servo motor, couplings, and control parameters are reviewed together early in the design phase.

Implementation, Maintenance, and Long-Term Value

Understanding what Harmonic Drive Company does also means understanding how its products create value after installation. In machine tools, performance is judged not just by initial accuracy, but by consistency, uptime, service access, and the ability to keep production stable over months or years.

Implementation steps for machine builders

1. Define axis duty cycle, speed range, and torque peaks
2. Match the reducer to motor size, feedback system, and inertia ratio
3. Review mounting precision, shaft support, and enclosure conditions
4. Tune the servo system under real load and validate positioning repeatability
5. Set maintenance inspection intervals based on cycle count and environment

Commissioning should include thermal observation during repeated operation, especially for axes that perform dense indexing or continuous reversing. A 2-hour to 4-hour run test under representative load often reveals alignment or tuning issues that a short trial may miss.

Maintenance considerations

Precision motion components benefit from routine inspection rather than reactive repair. In many machine tool installations, a practical review interval is every 3 to 6 months, depending on contamination level, duty cycle, and operating hours. Critical lines running multiple shifts may require more frequent checks.

Maintenance teams should monitor noise changes, temperature rise, vibration patterns, fastener integrity, and lubrication condition. Small deviations can indicate mounting stress, misalignment, overload, or wear progression before they become production-stopping failures.

Long-term benefits for B2B users

When correctly selected, Harmonic Drive-based systems can help machine tool OEMs and end users reduce footprint, improve indexing quality, and simplify compact multi-axis design. This can translate into faster machine development, better repeatability, and more efficient use of enclosure space.

For end users, the value often appears in reduced setup variation, more stable automation performance, and fewer motion-related accuracy issues during long runs. For OEMs, it can support platform standardization across several machine sizes instead of redesigning every rotary module from scratch.

Frequently asked questions

Is Harmonic Drive only used in robots?

No. Robotics is a major application area, but machine tools, indexing systems, semiconductor equipment, inspection systems, and compact automation modules also use this type of precision transmission where low backlash and compact design are important.

Does a harmonic gear replace every other gearbox in machine tools?

Not necessarily. Selection depends on torque, speed, stiffness, cost target, duty cycle, and installation envelope. In some feed systems or heavy-load axes, other transmission types may still be more appropriate.

What should buyers ask suppliers first?

Start with application data: axis function, required ratio, peak and continuous torque, motion profile, target accuracy, working environment, and expected service interval. Clear inputs reduce the risk of oversizing, undersizing, or difficult commissioning later.

Harmonic Drive Company plays an important role in precision motion by supplying compact, high-accuracy gear technology used across machine tool equipment and integrated automation. Its relevance is strongest where low backlash, high reduction, limited space, and repeatable angular control must coexist in one design.

If you are comparing drive options for rotary axes, tool changers, loading units, or precision indexing systems, a careful review of Harmonic Drive solutions can clarify performance limits, integration requirements, and long-term maintenance value. Contact us to discuss your machine tool application, get a tailored recommendation, or learn more about precision motion solutions for high-performance manufacturing.
