What Advantages Does the HONPINE 2026 New HAG Harmonic Drive Robot Joint Actuator Offer?
The HONPINE HAG harmonic drive robot joint actuator is specially developed for the embodied intelligence field, breaking through the bottlenecks of traditional joint design, achieving both lightweight and high performance; it integrates an internal torque sensor, easily realizing the robot’s force-position hybrid control function, giving the robot better dynamic response and higher transmission accuracy, thereby achieving more flexible grasping capability; comprehensively improving the motion performance and operation quality of embodied intelligent robots.
What applications is the HAG harmonic drive robot joint actuator suitable for?

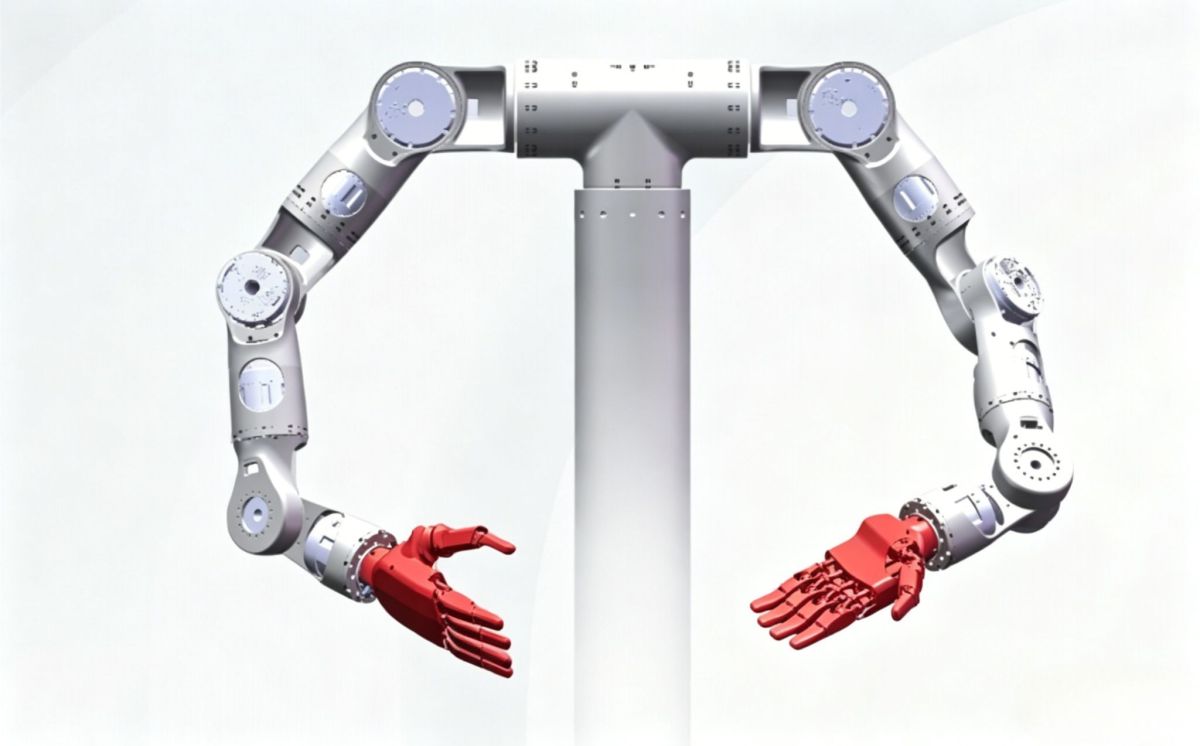

The 48V version of this product can be widely used in collaborative manipulators, medical device arms, humanoid robots, special robots, 3C, semiconductors, AGV vehicles, mobile camera gimbals, etc.
What are the main features of the HAG harmonic drive robot joint actuator?
Integration

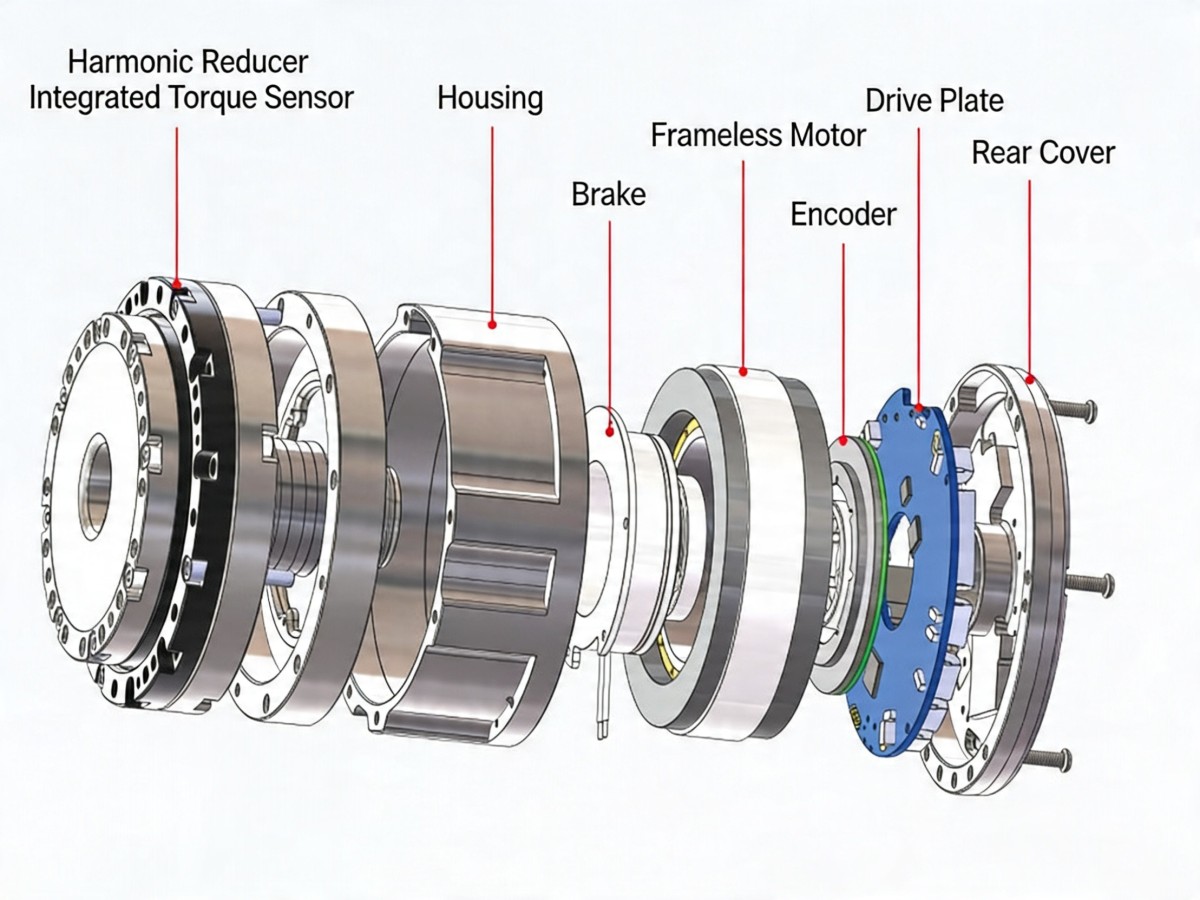

Integrates high-torque precision harmonic reducer, frameless torque motor, torque sensor (optional), absolute encoder, electromagnetic brake (optional), and driver into one; a single module can achieve torque closed-loop control.
Long service life
Stable performance, with precision maintained for more than 10,000 hours.
High precision
Positioning accuracy ≤10 arcsec, repeat positioning accuracy ≤2 arcsec.
Maintenance-free
The reducer is maintenance-free throughout its lifecycle, based on modular design.
Easy to use
Direct-drive integrated design, fully sealed structure, easy installation, plug and play.
Hollow shaft
The hollow shaft allows convenient routing of cables, air pipes, laser beams, etc.
High compatibility
Versions with brake and without brake, with torque sensor and without torque sensor, have basically the same dimensions.
What new functions does the HAG harmonic drive robot joint actuator have?
1. Stronger industrial compatibility, supports EtherCAT + CiA402, CANopen + CiA402, customers do not need to redevelop control logic when replacing other brands.
2. Higher control capability, can achieve real-time PID adjustment, better improving robot precision, stability, and response speed.
3. Realizes variable load inertia identification, can automatically identify load changes, optimize control parameters, and reduce debugging time.
4. Covers almost all application scenarios, CSP / CSV / CST cyclic synchronous modes.
Contact us to get more information about the HAG harmonic drive robot joint motor.
